Atmospheric Ring Burners

Whatever your burner requirements, Johnson engineers will work with you toward the best solution

Pricing
Replacement Parts

Numbers 60 and 40

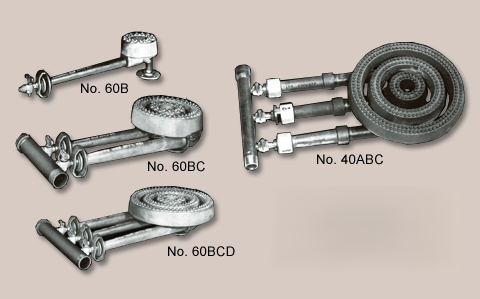

These rugged burners consist of independently controlled concentric ring burners which can be used singly, in pairs, in triple or quadruple. Burners are constructed of smooth grey iron castings with two rows of raised gas ports. They are designed to allow plenty of secondary air to each burner adding efficiency and longer life. Each ring burner has a separate Johnson venturi mixer and tube with heavy brass valve.

The center burners (No. 40A, No. 60B) are furnished with a floor flange so that the burners may be placed any distance from the floor simply by increasing the length of the stand.

Double, triple and quadruple burners are equipped with manifold for connecting to gas supply line. The length from the center to the manifold can be reduced or increased to meet special requirements. Available with safety and temperature controls. OEM and quantity prices available.

Specifications:


Burner
Number

Diameter
(Inches)

Height
(Inches)

Length
Center of
M’fold Connect.
(Inches)
Gas
Connection
(Inches)

Gas
Input
BTU/hr.

Approx.
Shipping
Weight
(Lbs.)
40 A Single
4-1/2
5-1/4
15-1/2
1/4 Cock
15,000
7-1/2
40 AB Double
8
5-1/4
15-1/2
1 M’fold
53,000
17
40 ABC Triple
12
5-1/4
15-1/2
1 M’fold
107,000
35

60 B Single
5
6-1/4
19-1/2
1/2
23,500
14
60 C Single
10
6-1/4
19-1/2
1/2
58,600
20
60 D Single
15
6-1/4
19-1/2
1/2
91,800
34
60 E Single
20
6-1/4
19-1/2
1/2
117,000
44

60 BC Double
10
6-1/4
19-1/2
1-1/2
82,100
38
60 BCD Triple
15
6-1/4
19-1/2
1-1/2
173,900
72
60 BCDE Quad
20
6-1/4
19-1/2
1-1/2
290,900
112
